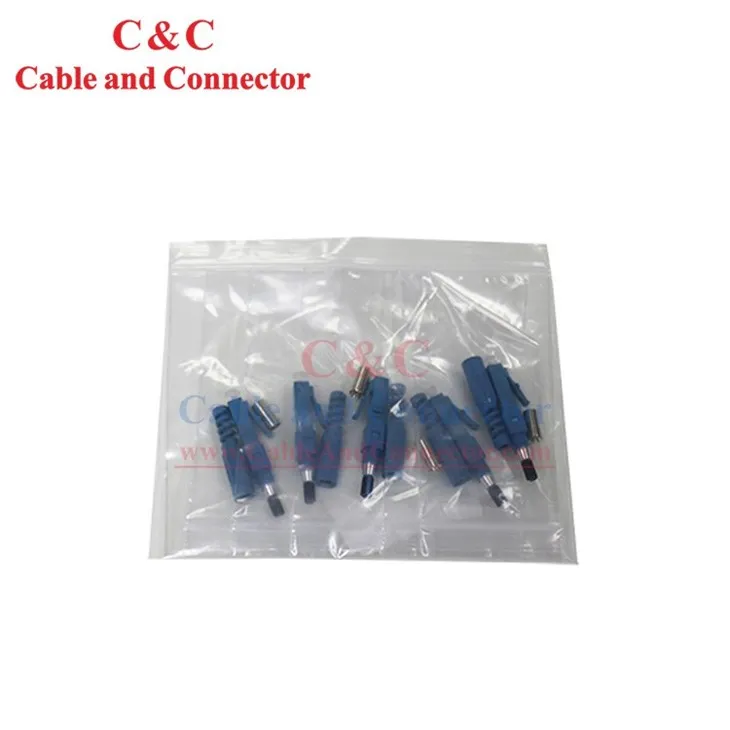

Fiber Quick Connector, Optical Fiber Fast Connector Fast Connectors are designed to simplify the process of connecting optical fibers, making it quicker and easier compared to traditional methods that involve manual polishing and epoxy curing. These connectors often use pre-polished ferrules and mechanical alignment techniques to achieve low insertion loss and low reflectance. The design of Fast Connectors minimizes the need for specialized tools and expertise, which can be especially useful in field installations and situations where speed is important, LC/UPC Fast Connector (CC-FCLU-920H), suitable for: Ф3.0 mm & Ф2.0 mm Cable, Fiber Diameter: 125μm (652 & 657), Coating Diameter: 900μm, Mode: SM, Insertion Loss: about 4min (exclude fiber presetting), Return Loss: ≥50dB, Tighten Strength of Bare Fiber: >3N, Tensile Strength: >30N/2min.
Specifikation
|
Vare |
Specifikation |
|
Kabel omfang |
Ф3.0 mm & Ф2.0 mm kabel |
|
Fiberdiameter |
125μm (652 & 657) |
|
Belægningsdiameter |
900μm |
|
Tilstand |
SM |
|
Driftstid |
ca. 4 min (ekskl. fiberforudindstilling) |
|
Indføringstab |
Mindre end eller lig med {{0}},3 dB (1310nm & 1550nm), Max Mindre end eller lig med 0,5 dB |
|
Afkasttab |
Større end eller lig med 50dB for UPC |
|
Succesrate |
>98% |
|
Genanvendelige gange |
Større end eller lig med 10 gange |
|
Stram Styrken af Bare Fiber |
>3N |
|
Trækstyrke |
>30N/2min |
|
Temperatur |
-40-+85 grad |
|
On-line trækstyrketest (20 N) |
△ IL Mindre end eller lig med 0.3dB |
|
Mekanisk holdbarhed (500 gange) |
△ IL Mindre end eller lig med 0.3dB |
|
Faldtest (4m betongulv, én gang i hver retning, tre gange i alt) |
△ IL Mindre end eller lig med 0.3dB |
